Introduction

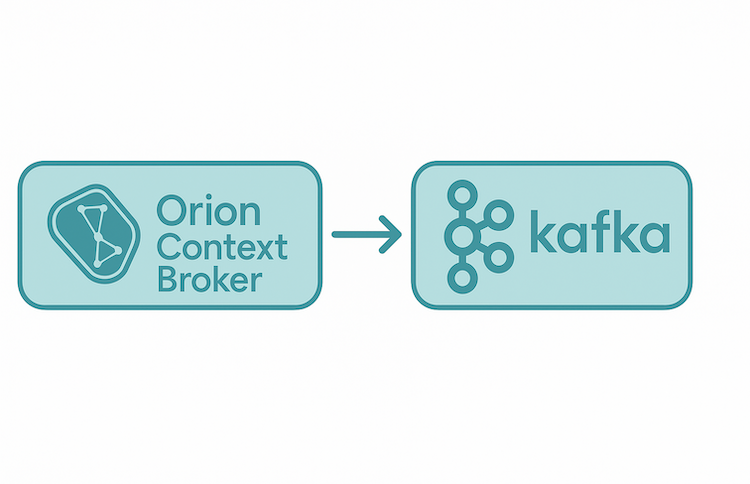

Orion can send notifications via Kafka. In this case, each time a notification is triggered, a KAFKA message is published to a specific KAFKA broker or KAFKA cluster specified at the time of subscription.

From an operational point of view, KAFKA subscriptions are like HTTP ones, as described in this section of the documentation and in the Orion API specification (e.g. the notification payload is the same, you can set an expiration date, a filtering expression, etc.) but they use kafka instead of http in the notification object.

...
"notification": {
  "kafka": {
    "url": "kafka://broker1:9092,broker2:9092,broker3:9092",
    "topic": "sub1"
  }
}
...

The following elements can be used within kafka:

  • url to specify the KAFKA broker endpoint to use. URL must start with kafka:// and never contains a path (i.e. it only includes host and port)
  • topic to specify the KAFKA topic to use
  • user (optional) username for Kafka SASL authentication. It must be used together with passwd.
  • passwd (optional) password for Kafka SASL authentication. It must be used together with user.
  • saslMechanism (mandatory if user/passwd are set) SASL mechanism to use. Allowed values are: PLAIN, SCRAM-SHA-256, SCRAM-SHA-512.
  • securityProtocol (optional) Kafka security protocol to use when SASL authentication is enabled. Allowed values are: SASL_PLAINTEXT, SASL_SSL.

Another difference between KAFKA and HTTP subscriptions in that the former don't include the following fields:

  • lastSuccessCode. There is no equivalence to HTTP response codes in KAFKA case
  • lastFailureReason. The only failure reason that Orion is able to detect is connection fail to the corresponding KAFKA cluster. Thus, there is no need of providing extra detail.

However, note that lastSuccess and lastFailure fields (which specify the timestamp of the last success/failure) are supported in kafka subscriptions in the same way than in HTTP subscriptions.

Custom notifications

Custom notifications (described in this section of the Orion API specification) in KAFKA subscriptions work the same as in HTTP subscriptions, taking into account the following:

  • kafkaCustom is used instead of httpCustom
  • The same fields used in kafka can be used in kafkaCustom.
  • qs and methodcannot be used, as they doesn’t have equivalence in Kafka
  • Macro replacement is performed in topic, payload, json and ngsi fields. url is a fixed value.

Structure of a message in Kafka notifications

  • Key: message field used by Kafka for partitioning. In Orion, this field is sent with a null value, so the destination partition is assigned automatically according to the producer configuration.

  • Headers: Kafka supports message headers encoded as key-value pairs. Orion includes the following default headers:

  • Fiware-Service

  • Fiware-ServicePath

In kafkaCustom notifications, these headers can be overwritten, and additional custom headers can be defined in the subscription.

Payload: (message body): This is the main content of the message that Orion publishes to Kafka. It corresponds to the notification payload or the content generated by a custom notification

Check more information about custom notifications in the corresponding section of the Orion API document.

Connection management

The endpoint of the KAFKA cluster associated with a subscription is specified in the url field at the time of subscription, but the connection to it is made the first time a KAFKA notification is published.

Once established, the connection to KAFKA remains open while notifications are being published. If it is not used (no messages are sent), Orion will close it after a maintenance period defined by the -kafkaMaxAge parameter (CLI parameter, 30 days by default). If an error occurs with KAFKA, the connection will also be closed and automatically re-created the next time Orion publishes a notification.
